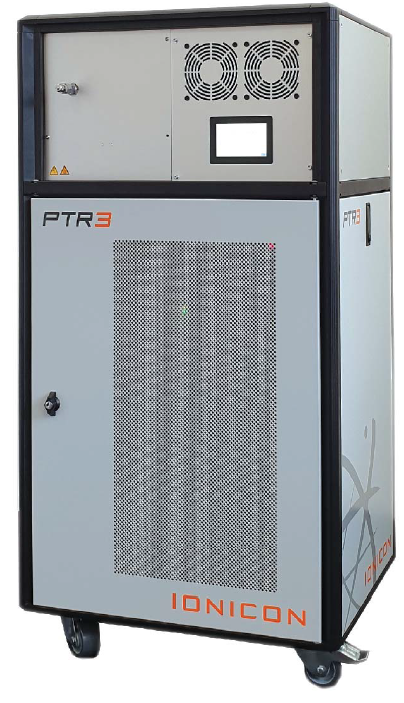

PTR3-TOF 10K mass spectrometer - Trace VOC-ELVOC Analyzer  ▶ 주요 특징
• Detection optimized from VOC to ELVOC, highly-oxygenated molecules and RO2 radicals
• Virtually loss-less dual-stage core sampling inlet system
• TRIONSOURCE triple ion source for fast switching between H3O+, NO+ and NH4+
• IP protected novel 3D tripole reactor
• Renowned ION-BOOSTER funnel and hexapole ION-GUIDE
• New high-resolution ioniTOF 10K
▶ 사양 (첨부 카탈로그 확인)
• Mass resolution :
> 10000 m/Δm (FWHM) certified for m/z > 129
> 12000 m/Δm (FWHM) achievable • Sensitivity:
> 50000 cps/ppbv achievable for selected compounds
> 15000 cps/ppbv certified at m/z 129 (octanone) at 10000 m/Δm, at < 30% RH, room temp.
• Limit of Detection:
at m/z 129: < 100 ppqv (octanone) averaged over 60s,
at 10000 m/Δm, at < 30% RH, room temp., S/N=3.
|
